Round LED Panel Light (Down Light Edge-lit)
Round LED panel light is a adjustable size of opening lighting fixture that offers highly efficient and uniform illumination, making it an ideal choice for any settings.Unlike regular LED down light, this LED round panel light does not require a changeless hole. Therefore, it easily replaces regular down light.
It is a reliable and cost-effective lighting solution for various commercial environments such as offices, hospitals, hotels and retail spaces.
Features:
- Structure:Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
- External Isolated Driver, Customized Dimming Function
- Bridgelux/Samsung/Philips/Osram/Epstiar SMD 2835
- CCT:3000K/4500K/5500K/6500K
- IP Rating: IP 20 indoor use
- Housing Color：Black/White
- Surge 2.0 KV,Connector Safe and Reliable Design
- Thickness :23 mm
- Mosquito and Dust Prevention
- Warranty: 3/5 Years
- Compliance: CE RoHS Certified
Model:ST-RLPL-3-6EL
- Wattage:6 W
- Light Efficiency(lm/w):90/100/120
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K
- CRI (Ra)>80
- IP Grade:20
- Size(Dia. x H):100 x 23 mm
- H1:15 mm;H2: 8 mm
- Packing:24 pcs/carton
Model:ST-RLPL-4-8EL
- Wattage:8 W
- Light Efficiency(lm/w):90/100/120
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K
- CRI (Ra)>80
- IP Grade:20
- Size(Dia. x H):118 x 23 mm
- H1:15 mm;H2: 8 mm
- Packing:24 pcs/carton
Model:ST-RLPL-6-15EL
- Wattage:15 W
- Light Efficiency(lm/w):90/100/120
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K
- CRI (Ra)>80
- IP Grade:20
- Size(Dia. x H):175 x 23 mm
- H1:15 mm;H2: 8 mm
- Packing:20 pcs/carton
Model:ST-RLPL-8-18EL
- Wattage:18 W
- Light Efficiency(lm/w):90/100/120
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K
- CRI (Ra)>80
- IP Grade:20
- Size(Dia. x H):230 x 23 mm
- H1:15 mm;H2: 8 mm
- Packing:20 pcs/carton

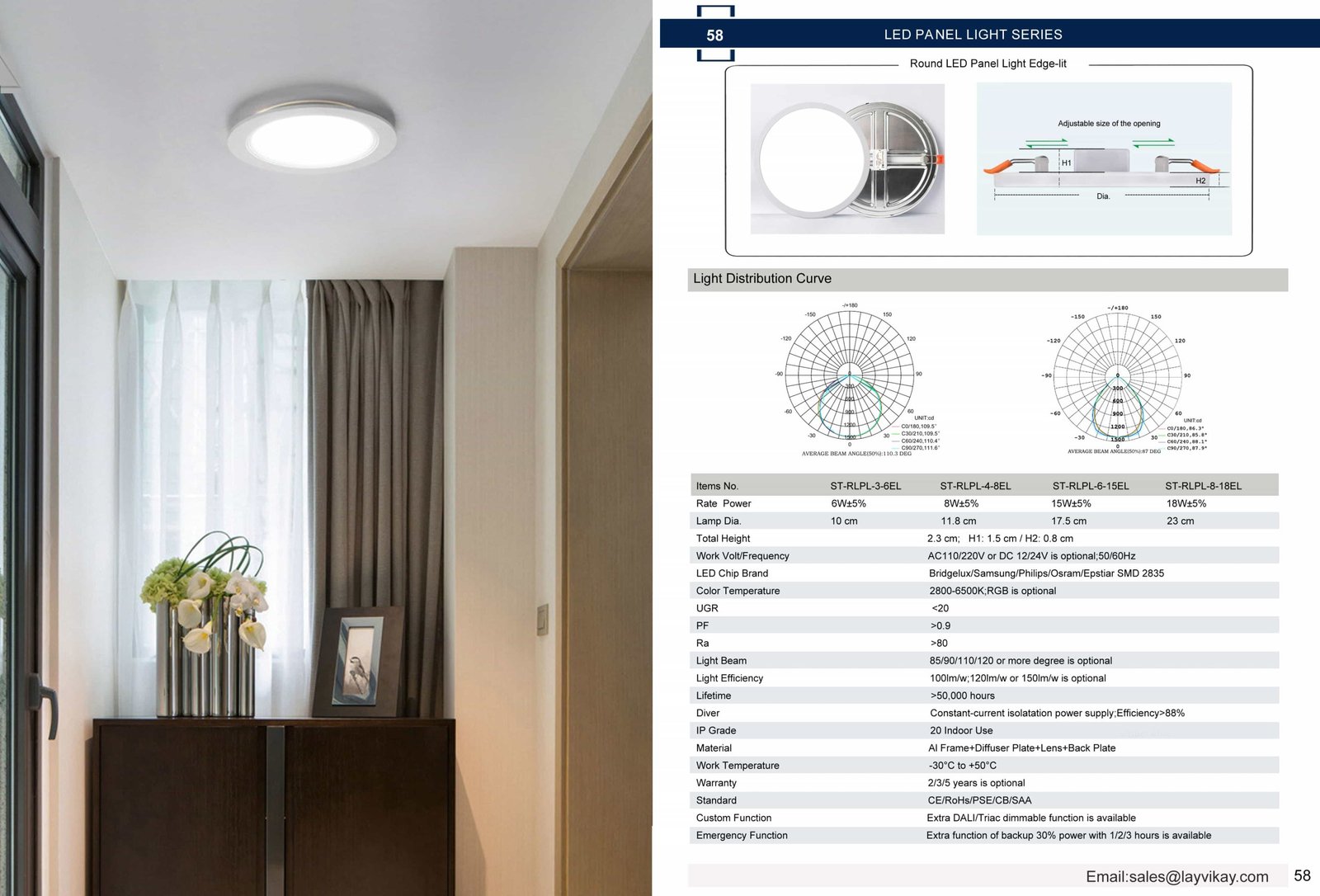

More Details of Round LED Panel Light
- LED Beads(SMD2835)+ PCB(high thermal conductivity aluminum substrate)
- AL Frame(6063 Al)
- Diffuser Plate:PC/ Acrylic (PMMA) or PS is optional
- Light Guide Plate: Optical Grade Acrylic/PC Sheet.
- Reflective Sheet:High Reflex PET Sheet
- Back Plate: Metal Material.
Led Driver: Over-voltage, over-temperature, anti-surge protection brand isolated external driver
Different order quantities, shipping methods and parameter requirements will be different prices, please get in touch with our sales for an accurate quotation.
Installation of Round LED panel light
LED panel lights are easy to install. It has several different installations:built-in installation, ceiling-mounted installation(exposed installation) and suspended installation.
Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.
Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.
Customized Requirement is Optional:
- Light Source LED Beads Quantity
- LED Chip Brand
- Color Temperature
- Driver: TRIAC/0-10 V/DALI dimmable
- DC12/24V or AC 110/220V is optional
- Your Logo and Package Design
- Emergency Backup (30% power with 1 / 2/ 3 hours duration)
