Panel Lights LED (Back-lit 30 x 90 cm)
Panel lights LED refer to modern lighting fixtures that utilize Light Emitting Diode (LED) technology. These lights are designed in a panel shape with numerous LED chips integrated, resulting in an even and bright illumination.
LED panel lights are renowned for their flexibility in design and installation options. Their slim appearance can be recessed into ceilings or suspended for a sleek and streamlined appearance in both residential and commercial settings. They offer a highly efficient and aesthetically pleasing lighting solution for modern spaces.
Features:
- Structure:Al Frame+Diffuser Plate+Lens+Back Plate
- External Isolated Driver, Customized Dimming Function
- Bridgelux/Samsung/Philips/Osram/Epstiar SMD 2835
- CCT:3000K/4500K/5500K/6500K,RGB is available
- IP Rating: IP 20/IP 65 Waterproof
- Beam Angle 110 Deg(standard)
- Surge 2.0 KV,Connector Safe and Reliable Design
- Easy To Install,Suspending & Ceiling mounted & Recessed
- Thickness :31 mm
- Mosquito and Dust Prevention
- Warranty: 3/5 Years
- Compliance: CE RoHS Certified
Model:ST-LPL-3090-28BL
- Wattage:28 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 90 cm
- Inch:11.6″ x 35″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
Model:ST-LPL-3090-38BL
- Wattage:38 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 90 cm
- Inch:11.6″ x 35″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
Model:ST-LPL-3090-42BL
- Wattage:42 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 90 cm
- Inch:11.6″ x 35″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
Model:ST-LPL-3090-48BL
- Wattage:48 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 90 cm
- Inch:11.6″ x 35″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton

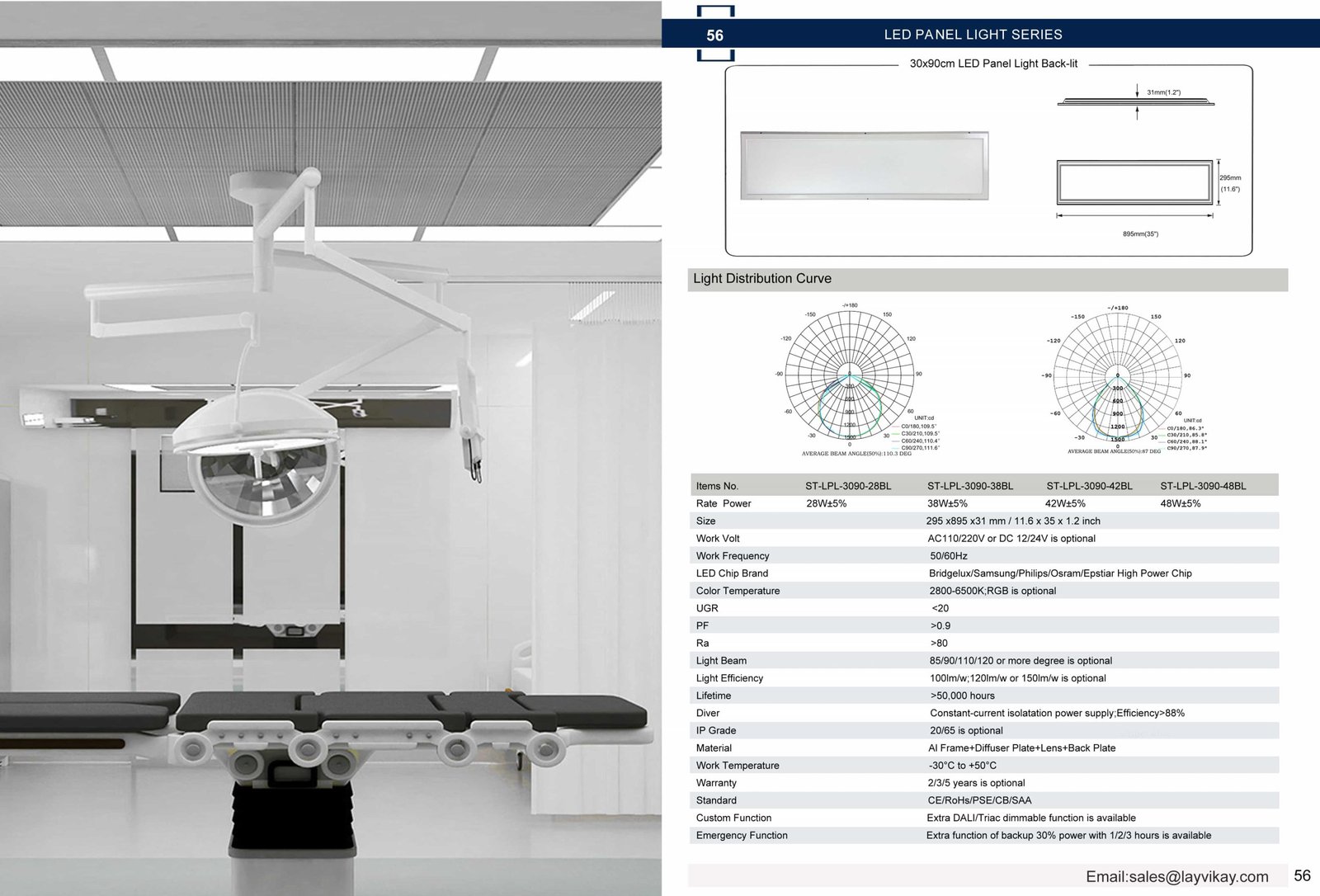

More Details of Panel Lights LED 30 x 90 cm
- AL Frame(6063 Al)
- Diffuser Plate:PC/ Acrylic (PMMA) or PS is optional
- LED Beads+ Lens+PCB(high thermal conductivity aluminum substrate)
- Back Plate: Metal Material, 2.5-3mm thickness.
Led Driver: Over-voltage, over-temperature, anti-surge protection brand isolated external driver
Different order quantities, shipping methods and parameter requirements will be different prices, please get in touch with our sales for an accurate quotation.
Installation of LED panel light
LED panel lights are easy to install. It has several different installations:built-in installation, ceiling-mounted installation(exposed installation) and suspended installation.
Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.
Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.
Customized Requirement is Optional:
- Light Source LED Beads Quantity
- LED Chip Brand
- Color Temperature
- Driver: TRIAC/0-10 V/DALI dimmable
- DC12/24V or AC 110/220V is optional
- Your Logo and Package Design
- Emergency Backup (30% power with 1 / 2/ 3 hours duration)
