LED Square Panel Light (Back-lit 45 x 45 cm)
The LED square panel light is a perfect lighting solution that offers superior illumination and energy efficiency. This modern rectangular fixture features a sleek design with a simple appearance, making it a perfect choice for professional settings such as offices, conference rooms, and retail spaces. With its high-quality LED chips, the square panel light delivers bright and even light distribution, eliminating unwanted shadows or glare.
Moreover, these LED light panels are known for their long lifespan and low maintenance requirements, ensuring cost-effectiveness in the long run.
Features:
- Structure:Al Frame+Diffuser Plate+Lens+Back Plate
- External Isolated Driver, Customized Dimming Function
- Bridgelux/Samsung/Philips/Osram/Epstiar SMD 2835
- CCT:3000K/4500K/5500K/6500K,RGB is available
- IP Rating: IP 20/IP 65 Waterproof
- Beam Angle 110 Deg(standard)
- Surge 2.0 KV,Connector Safe and Reliable Design
- Easy To Install,Suspending & Ceiling mounted & Recessed
- Thickness :31 mm
- Mosquito and Dust Prevention
- Warranty: 3/5 Years
- Compliance: CE RoHS Certified
Model:ST-LPL-4545-18BL
- Wattage:18 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:45 x 45 cm
- Inch:17.5″ x 17.5″
- Thickness:31 mm(1.2″)
- Packing:10 pcs/carton
Model:ST-LPL-4545-21BL
- Wattage:21 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:45 x 45 cm
- Inch:17.5″ x 17.5″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
Model:ST-LPL-4545-28BL
- Wattage:28 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:45 x 45 cm
- Inch:17.5″ x 17.5″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
Model:ST-LPL-4545-35BL
- Wattage:35 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:45 x 45 cm
- Inch:17.5″ x 17.5″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton

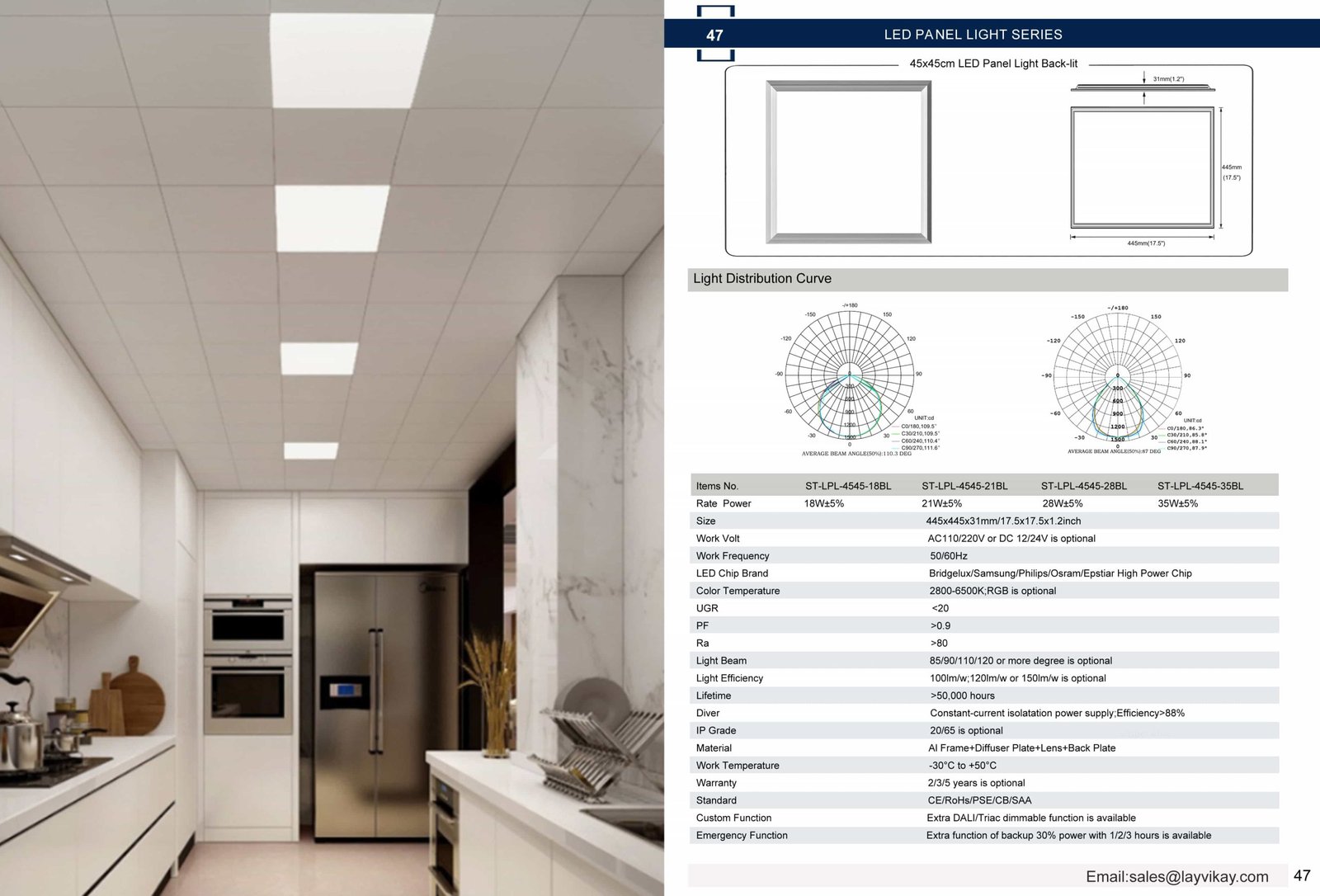

More Details of LED Square Panel Light
- AL Frame(6063 Al)
- Diffuser Plate:PC/ Acrylic (PMMA) or PS is optional
- LED Beads+ Lens+PCB(high thermal conductivity aluminum substrate)
- Back Plate: Metal Material, 2.5-3mm thickness.
Led Driver: Over-voltage, over-temperature, anti-surge protection brand isolated external driver
Different order quantities, shipping methods and parameter requirements will be different prices, please contact our sales for an accurate quotation.
Installation of LED panel light
LED panel lights are easy to install. It has several different installations:built-in installation, ceiling-mounted installation(exposed installation) and suspended installation.
Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.
Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.
Customized Requirement is Optional:
- Light Source LED Beads Quantity
- LED Chip Brand
- Color Temperature
- Driver: TRIAC/0-10 V/DALI dimmable
- DC12/24V or AC 110/220V is optional
- Your Logo and Package Design
- Emergency Backup (30% power with 1 / 2/ 3 hours duration)
