LED Light Panel (Back-lit 30 x 120 cm)
LED light panels are versatile lighting solutions that have gained popularity in both residential and commercial settings. One of the key advantages of LED panel light is their energy efficiency, as they consume significantly less power than traditional grille fixture while offering an equivalent or superior level of brightness.
Moreover, it has a longer lifetime, reducing maintenance costs and the need for frequent replacement.
LED light panels are often used in offices, schools, hospitals, as well as in photography studios due to their ability to provide evenly distributed illumination without casting harsh shadows. They offer versatility and adaptability to meet various professional lighting needs.
Features:
- Structure:Al Frame+Diffuser Plate+Lens+Back Plate
- External Isolated Driver, Customized Dimming Function
- Bridgelux/Samsung/Philips/Osram/Epstiar SMD 2835
- CCT:3000K/4500K/5500K/6500K,RGB is available
- IP Rating: IP 20/IP 65 Waterproof
- Beam Angle 110 Deg(standard)
- Surge 2.0 KV,Connector Safe and Reliable Design
- Easy To Install,Suspending & Ceiling mounted & Recessed
- Thickness :31 mm
- Mosquito and Dust Prevention
- Warranty: 3/5 Years
- Compliance: CE RoHS Certified

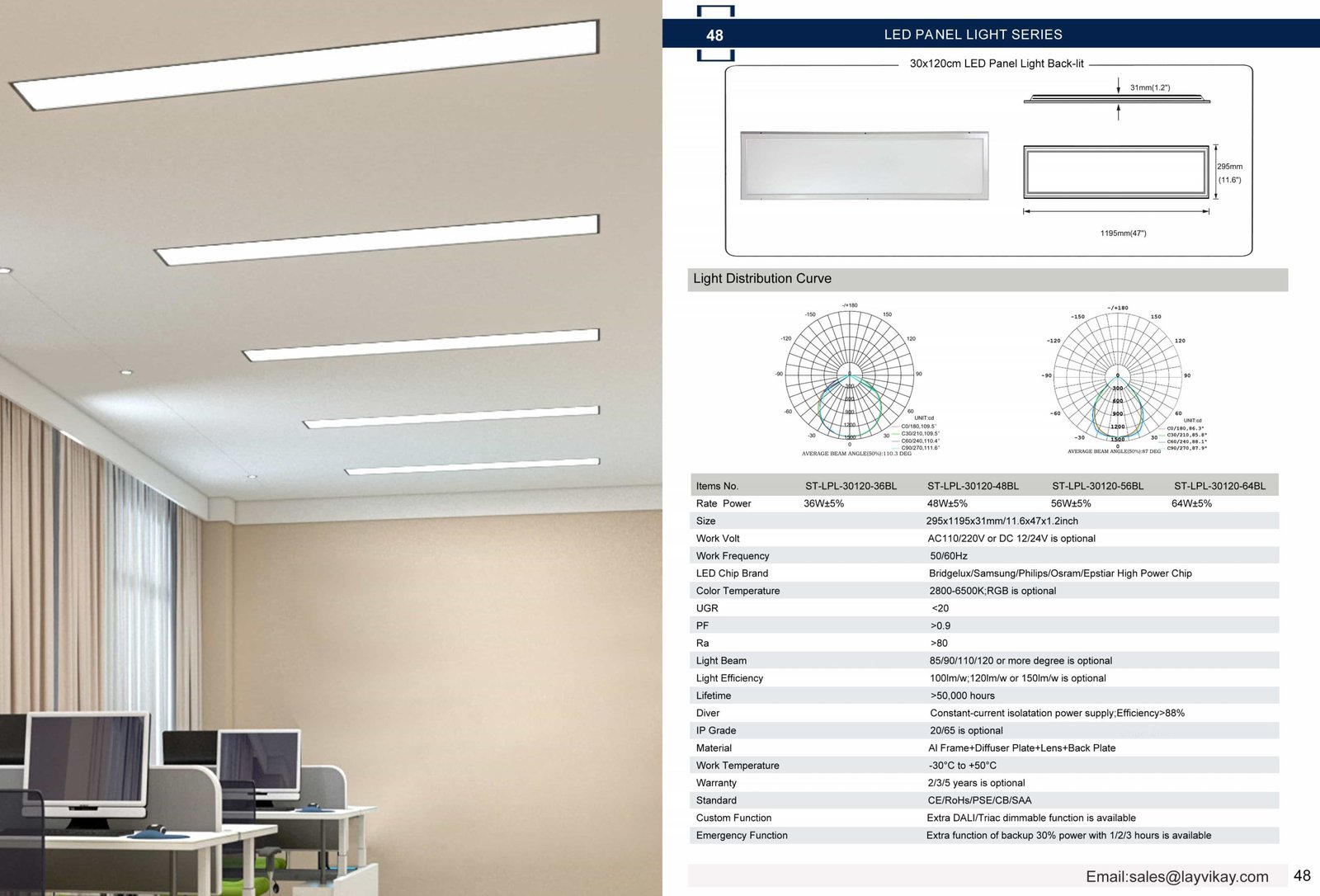

Model:ST-LPL-30120-36BL
- Wattage:36 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 120 cm
- Inch:11.6″ x 47″
- Thickness:31 mm(1.2″)
- Packing:10 pcs/carton
Model:ST-LPL-30120-48BL
- Wattage:48 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 120 cm
- Inch:11.6″ x 47″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
Model:ST-LPL-30120-56BL
- Wattage:56 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 120 cm
- Inch:11.6″ x 47″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
Model:ST-LPL-30120-64BL
- Wattage:64 W
- Light Efficiency(lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K;RGB
- CRI (Ra)>80
- IP Grade:20/65
- Size:30 x 120 cm
- Inch:11.6″ x 47″
- Thickness:31 mm(1.2″)
- Packing:8 pcs/carton
More Details of 30 x 120 cm LED Light Panel
- AL Frame(6063 Al)
- Diffuser Plate:PC/ Acrylic (PMMA) or PS is optional
- LED Beads+ Lens+PCB(high thermal conductivity aluminum substrate)
- Back Plate: Metal Material, 2.5-3mm thickness.
Led Driver: Over-voltage, over-temperature, anti-surge protection brand isolated external driver
Different order quantities, shipping methods and parameter requirements will be different prices, please get in touch with our sales for an accurate quotation.
Installation of LED panel light
LED panel lights are easy to install. It has several different installations:built-in installation, ceiling-mounted installation(exposed installation) and suspended installation.
Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.
Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.
Customized Requirement is Optional:
- Light Source LED Beads Quantity
- LED Chip Brand
- Color Temperature
- Driver: TRIAC/0-10 V/DALI dimmable
- DC12/24V or AC 110/220V is optional
- Your Logo and Package Design
- Emergency Backup (30% power with 1 / 2/ 3 hours duration)
