LED Ceiling Panel Light (Edge-lit 40 x 40 cm)
LED ceiling panel light is a highly efficient lighting solution that offers an array of benefits and features. This type of light fixture utilizes high performanceLED chips to deliver bright and uniform illumination across a room.
Furthermore, LED ceiling panel lights are designed with an ultra-thin profile and sleek appearance which seamlessly integrates into any interior design scheme.
These LED lamps also provide flicker-free lighting, ensuring a comfortable environment for users while reducing eye strain.
Features:
- Structure:Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
- External Isolated Driver, Customized Dimming Function
- Bridgelux/Samsung/Philips/Osram/Epstiar SMD 2835
- CCT:3000K/4500K/5500K/6500K,CCT tunable is available
- IP Rating: IP 20/IP 65 Waterproof
- Beam Angle 110 Deg(standard)
- Surge 2.0 KV,Connector Safe and Reliable Design
- Easy To Install,Suspending & Ceiling mounted & Recessed
- Ultra Thin Thickness :12 mm
- Mosquito and Dust Prevention
- Warranty: 3/5 Years
- Compliance: CE RoHS Certified
Model:ST-LPL-4040-18EL
- Wattage:18 W
- Light Efficiency (lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K
- CRI (Ra)>80
- IP Grade:20/65
- Size:40 x 40 cm
- Inch:15.6” x 15.6”
- Thickness:12 mm(0.47″)
- Packing:10 pcs/carton
Model:ST-LPL-4040-25EL
- Wattage:25 W
- Light Efficiency (lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K
- CRI (Ra)>80
- IP Grade:20/65
- Size:40 x 40 cm
- Inch:15.6” x 15.6”
- Thickness:12 mm(0.47″)
- Packing:8 pcs/carton
Model:ST-LPL-4040-30EL
- Wattage:30 W
- Light Efficiency (lm/w):100/120/150
- Volt:DC 12/24 V or AC 85-220 V
- Frequency:50/60 Hz
- PF >0.9
- CCT:2800 K-6500 K
- CRI (Ra)>80
- IP Grade:20/65
- Size:40 x 40 cm
- Inch:15.6” x 15.6”
- Thickness:12 mm(0.47″)
- Packing:8 pcs/carton

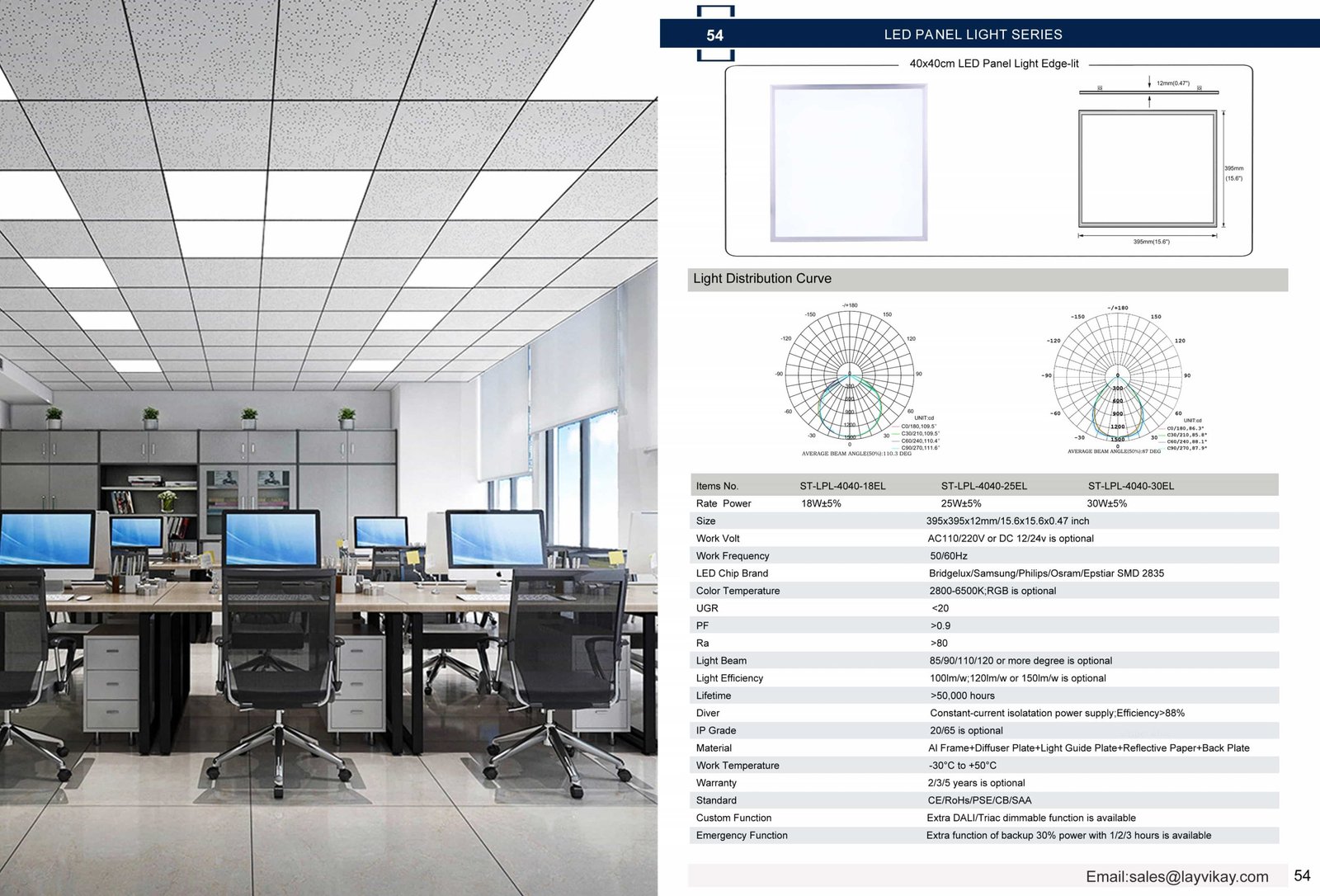

More Details of 40x40cm LED Ceiling Panel Light
- AL Frame(6063 Al)+LED Beads(SMD2835)+ PCB(high thermal conductivity aluminum substrate)
- Diffuser Plate:PC/ Acrylic (PMMA) or PS is optional
- Light Guide Plate: Optical Grade Acrylic/PC Sheet.
- Reflective Sheet:High Reflex PET Sheet
- Back Plate: Metal Material, 2.5mm-3mm thickness.
Led Driver: Over-voltage, over-temperature, anti-surge protection brand isolated external driver
Different order quantities, shipping methods and parameter requirements will be different prices, please get in touch with our sales for an accurate quotation.
Installation of LED panel light
LED panel lights are easy to install. It has several different installations:built-in installation, ceiling-mounted installation(exposed installation) and suspended installation.
Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.
Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.
Customized Requirement is Optional:
- Light Source LED Beads Quantity
- LED Chip Brand
- Color Temperature
- Driver: TRIAC/0-10 V/DALI dimmable
- DC12/24V or AC 110/220V is optional
- Your Logo and Package Design
- Emergency Backup (30% power with 1 / 2/ 3 hours duration)
