● PA Amplifiers

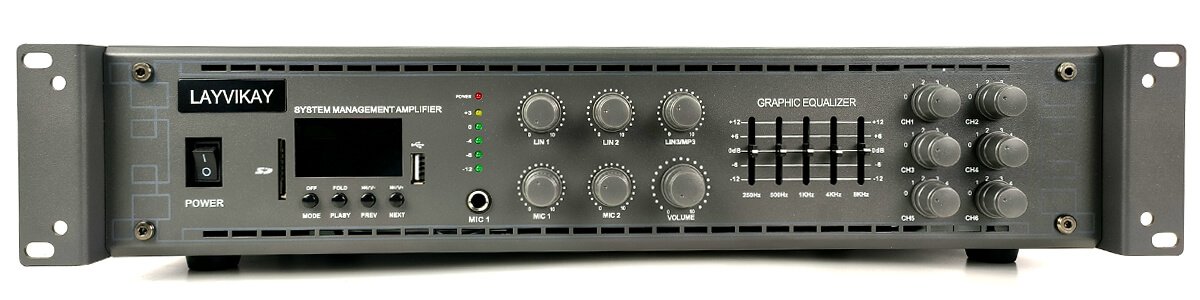

PA Mixer Amplifier

Layvikay provides high-performance PA mixer amplifier (public address power amplifier) at competitive prices. Differing from the professional power amplifier, the PA amplifier has two types of speaker outputs: one is the constant resistance with 4-16Ω, and the other is the constant voltage with 70V/100V.
Besides its regular functions, it has independent zone control, with microphone inputs in 6.35mm/XLR/combo sockets, auxiliary line inputs in RCA/combo sockets, MP3/SD card/USB, an AM/FM tuner, a built-in Chime, and more. Additionally, it has built-in protection circuits, with overload, output DC, and power-on delay protection functions.
Without a doubt, they are your perfect choice for public broadcasting/ background music in shops, offices, schools, warehouses, churches, restaurants and other public areas.

Features:

Constant Voltage + Constant Resistance Dual Functions
MIC1+MIC2 Dual Microphone System
6 Zones Independent Control
Graphic Equalizer
Digital Display
SD Card/USB Audio Input
Power and Clip LED Indicator
Short Circuit Protection
Overheat Protection
Soft Start Protection
Input and Output Overload Protection

Model:ST-EQG-120

Rated Power:120W
Rated Output Current: 0.9A@70V;0.6A@100V
Power Consumption: 200VA
Size:482x330x88mm
Weight:9.3KG

Model:ST-EQG-250

Rated Power:250W
Rated Output Current: 2.2A@70V;1.5A@100V
Power Consumption: 400VA
Size:482x330x88mm
Weight:12KG

Model:ST-EQG-350

Rated Power:350W
Rated Output Current: 3.6A@70V;2.5A@100V
Power Consumption: 550VA
Size:482x380x88mm
Weight:14.5KG

Model:ST-EQG-500

Rated Power:500W
Rated Output Current: 5.0A@70V;3.5A@100V
Power Consumption: 800VA
Size:482x380x88mm
Weight:15.7KG

Model:ST-EQG-700

Rated Power:700W
Rated Output Current: 6.5A@70V;4.5A@100V
Power Consumption: 950VA
Size:482x380x88mm
Weight:17.3KG

More Parameters

Output 1:4-16Ω (section 1)
Output 2:70V (section 2)
Output 3:100V(section 3)
Output 4:100V(CH1-CH6 section 4)
Five-band Equalizer:250Hz;50Hz;1KHz;8KHz+/- 12dB
Frequency Response:130HZ-22KHz +/- 2dB(Low-cut);60Hz-22KHz +/-2dB(No low-cut)
THD(1KHz):＜0.05%
S/N Ratio:MIC1-2 <-108dB equivalent input noise; LINE1,3 >88dB
Inputs:MIC1-2 -50dB 600 unbalanced; LINE1,3 -10dB 10K unbalanced
MIC1 mute adjust:-30dB
Line(Record) output:0dB(-10dB) unbalanced at 600Ω load
Bass Tone:±12dB(100Hz）
Treble Tone:±12dB(10KHz）
Standby Power Consumption:＜3W
Power Supply:AC120V;220V;230V;110V/220V;50-60Hz
Working Temperature:-10~40℃
Storage Temperature:-30 ~85℃

Download Specification

Customized&Thoughtful Service

Most of parameters can be customized:

Your Logo and Package Design
Appointed Brand Components
Wattage and Housing Color
Special Function Addition

Layvikay provides high-performance public address amplifier solutions with the latest technology, and more importantly, guarantees fast delivery times and attentive service to ensure customers sufficiently benefit from our high quality and competitively priced products.
Contact our sales team and let us know your requirement, we are pleased to recommend the most suitable PA mixer amplifiers.
